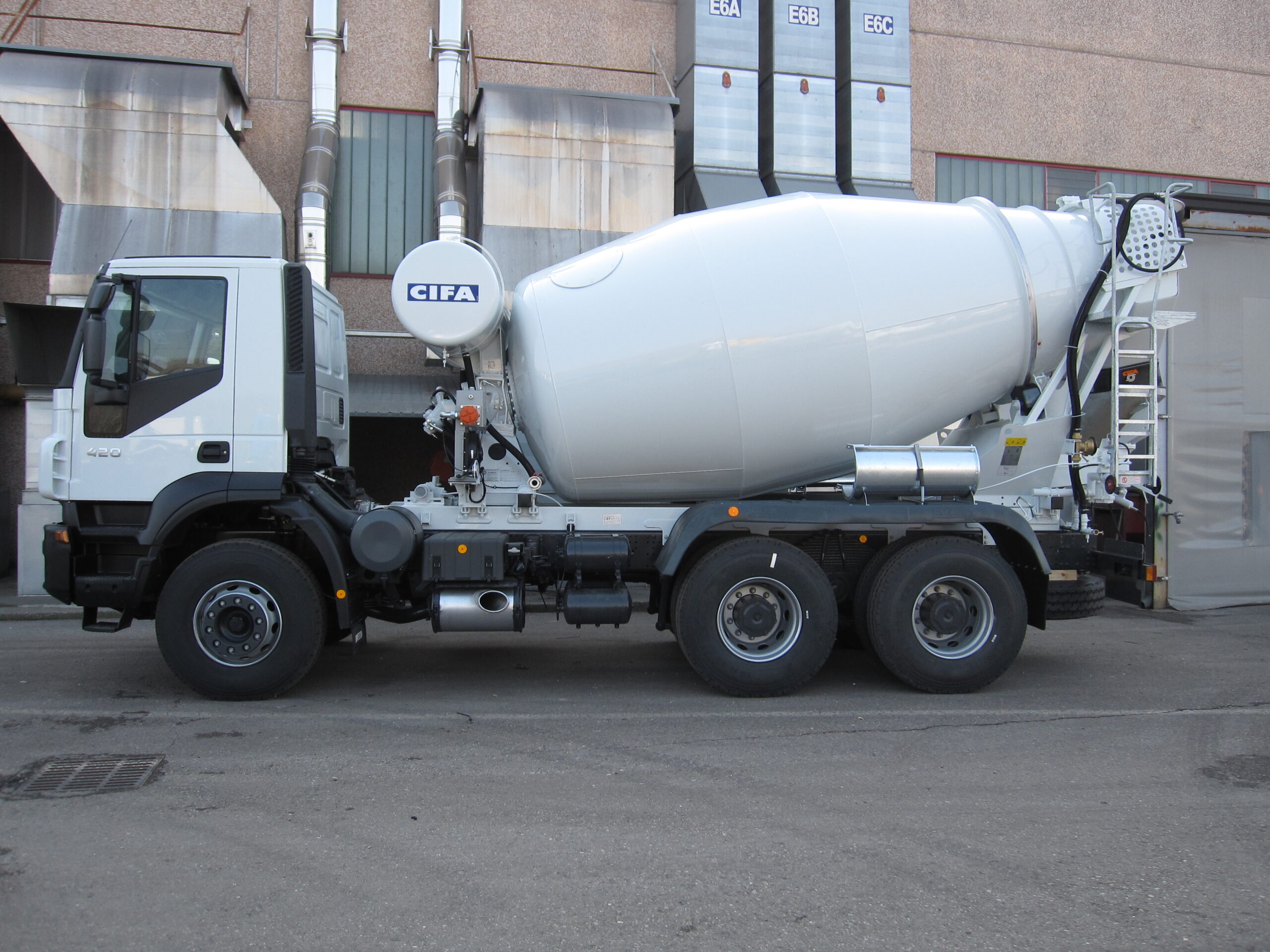

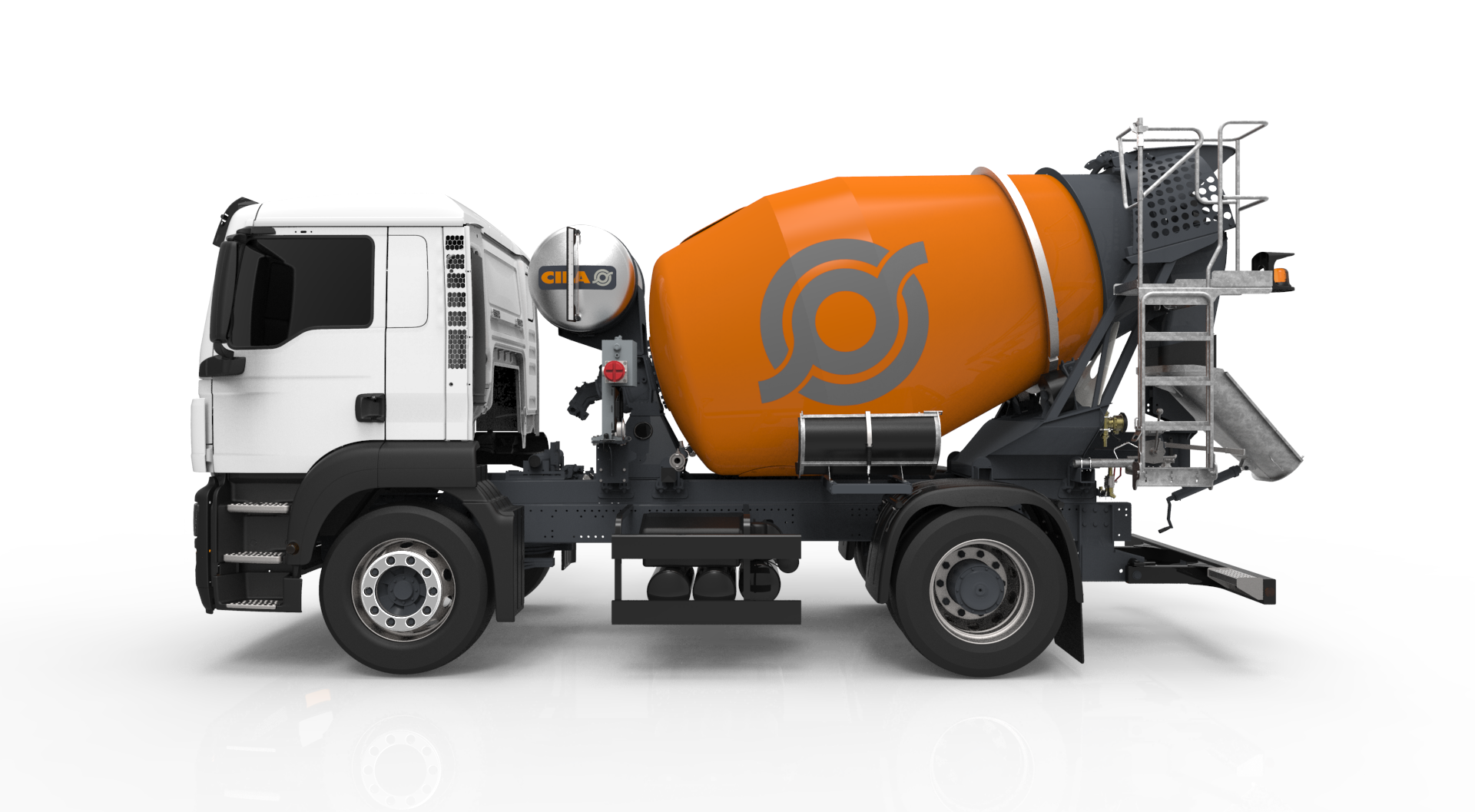

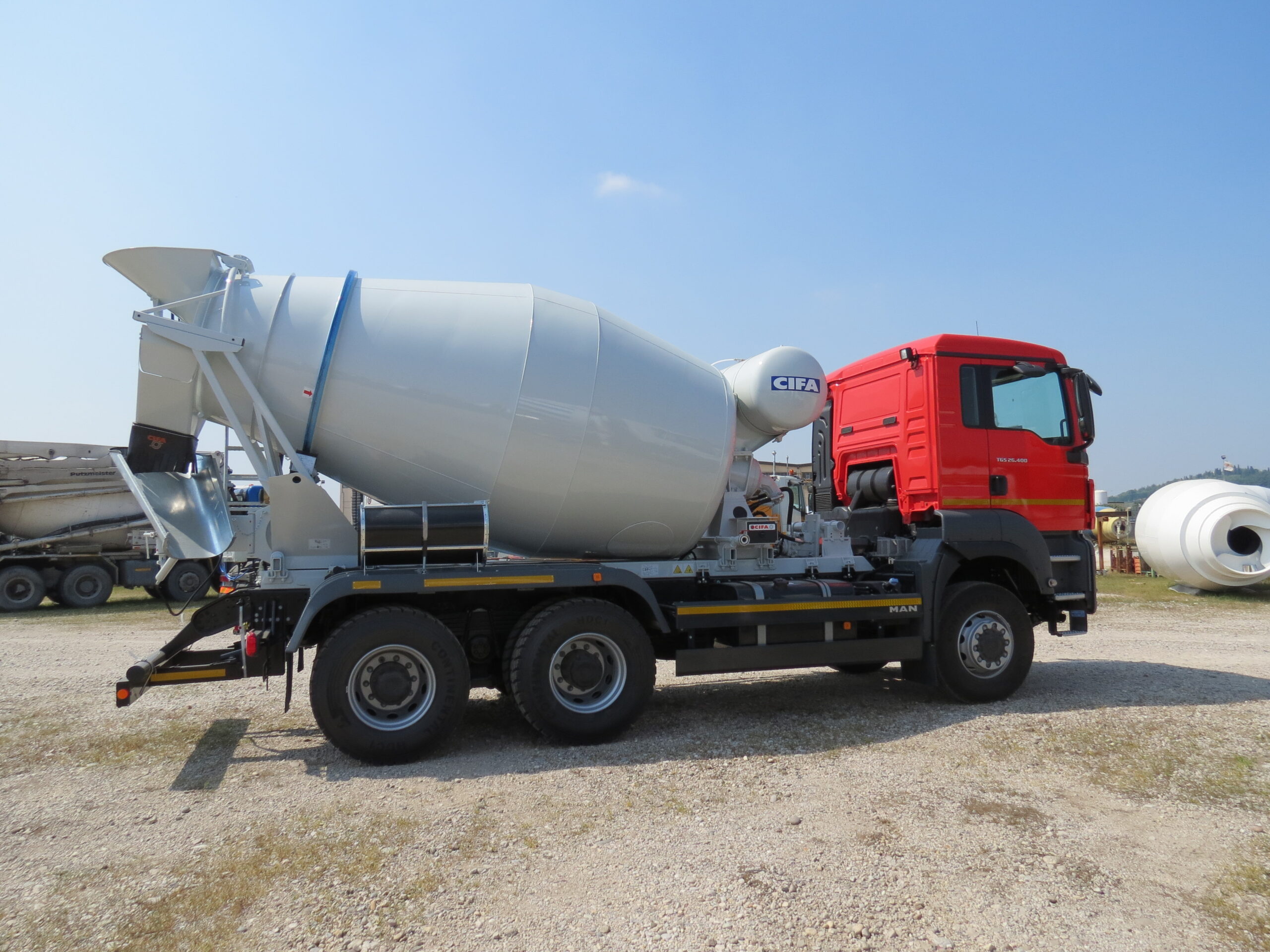

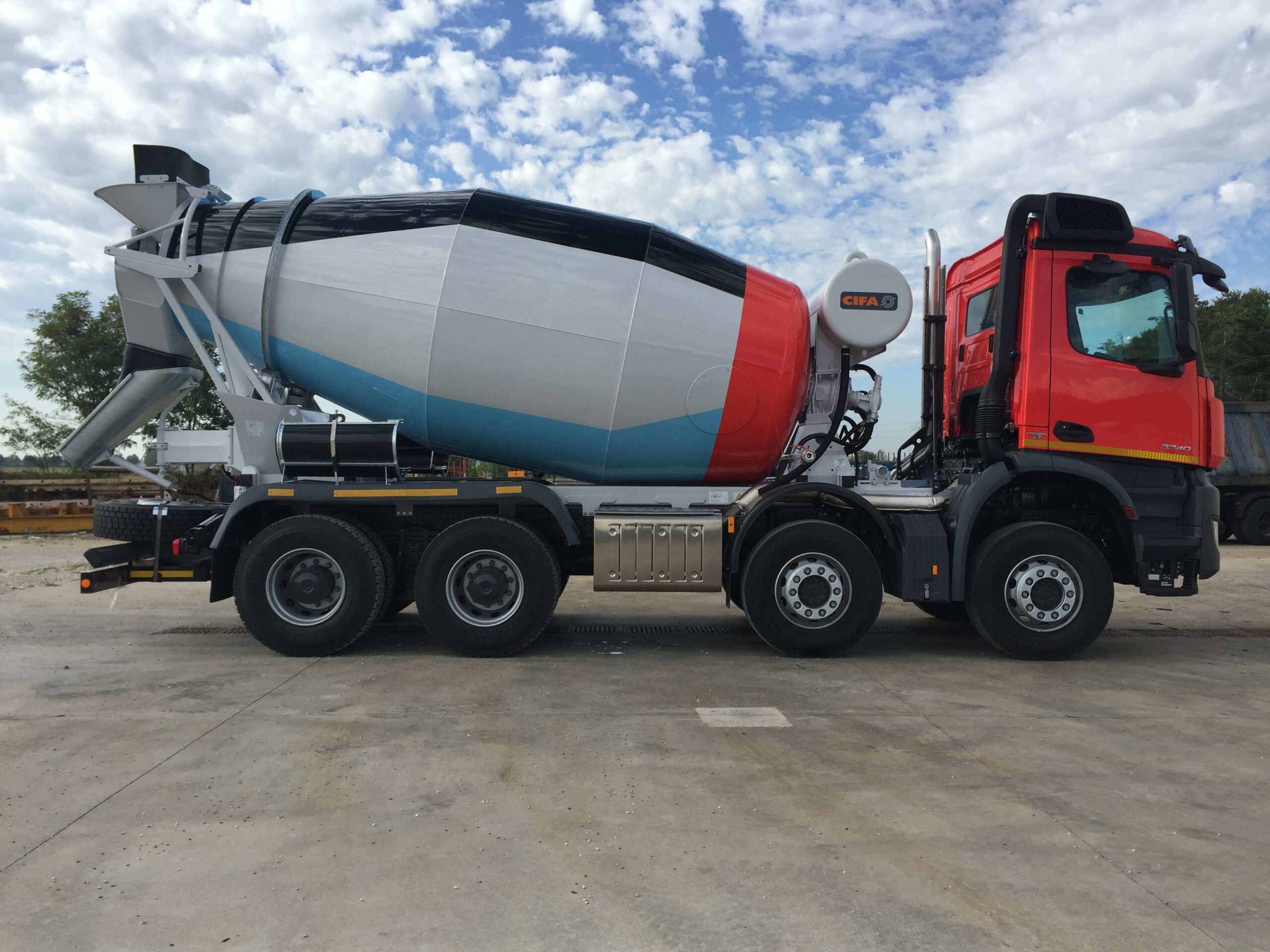

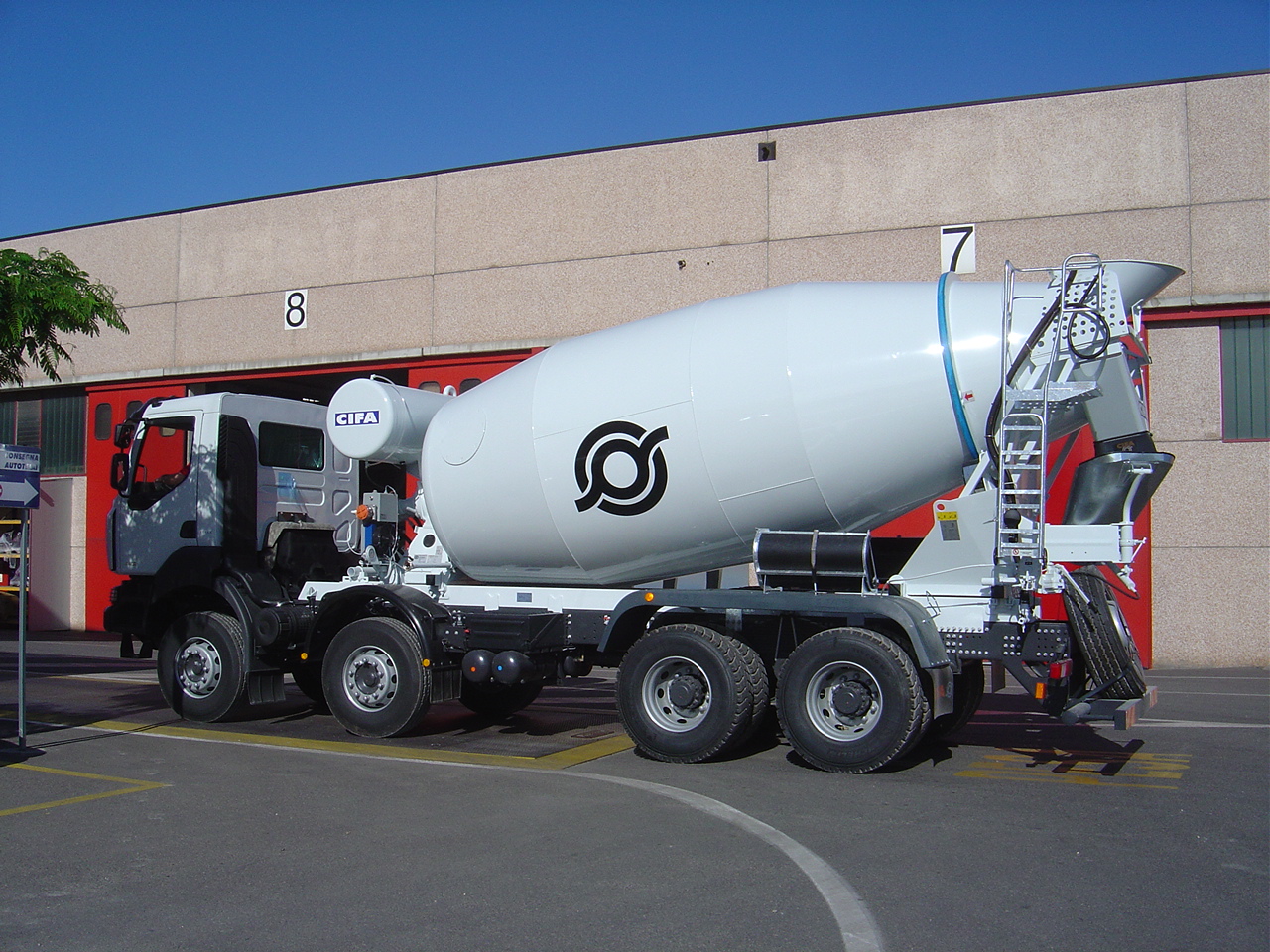

SL SERIES

The “SL/SLA” Series has been conceived with a modern and compact design which goes towards increasing better performances, such as a higher geometrical volume of the drum combined with a very limited total weight, simpler maintenance with greater safety.

This product is currently out of stock and unavailable.

assi autotelaio

4

motorizzazione

presa di forza
motore ausiliario

SL SERIES

  • capacità nominale: 4-15 m³
  • cabina: corta

HIGHLIGHTS

The “SL/SLA” Series has been conceived with a modern and compact design which goes towards increasing better performances, such as a higher geometrical volume of the drum combined with a very limited total weight, simpler maintenance with greater safety.

  • Basic frame, straight or shaped, made profile according to truck’s manufacturer specifications
  • Drum design according to DIN459 norm with large loading volumewith high water line
  • Drum and blades made by special wear-resistant steel 30MnB5, having high mechanical characteristics and high content of chrome and manganese
  • Wear protected blades
  • Two rollers diam. 250 mm with special off road support, completely bolted for an easy maintenance and adjusting
  • Water tank capacity 400 I (SL/SLA 7-8-9), 800 l (SL/SLA 10-15)
  • Two washing nozzles (one at ground level by quick joint and one on ladder platform)
  • Manometer for the concrete consistency
  • Two light additional chutes in iron-plastic material, with supports for their fixing on counterframe
  • Special design charging hopper and discharging hopper and chutefor a fast and smooth charging and discharging completely boltedfor a better and simple maintenance
  • Wear plates on charging hopper and discharging chute
  • Discharging chute hydraulically driven by manual pump
  • Adjustable support for hydraulic pump
  • Water pump driven by reducer
  • No. 2 quick joint water fillers on front sides of supporting frame
  • Oil cooler with integrated oil tank
  • Plastic back protection on rear support easy to clean
  • Two strong armed swivel chute system
  • Polymer mono-axle mudguards including rubber mudflaps
  • Machine completely sandblasted and painted in rust prevention.Ladder and chute are zinc protected for better rust resistance
  • Two man holes on the drum and two safety drum locking systems
  • Drum antirebound device
  • Water meter
